3D Stretch Bending Machine

3D Stretch Bending Machine can satisfy your needs of multi-direction bending, with optional stretch power ranging from 2 tons to 35 tons. With the technology of stress neutral layer control and spring-back control, G Clef stretch bending machine is able to avoid wrinkles, fractures and other problems, and ensure the bending quality. The positioning accuracy reaches 0.03mm, enabling the qualification rate of this machine to reach over 99%.



Description

Technical/Mechanical Data

Model: SFM-CNC-A3D20T-3500
Stretch Power: 2T,8T,20T and 35T
Max. Profile Length: 3m
Position Accuracy:±0.01mm
Controlable Stretch Power: 0.5 to 35 T
Jaw Position Reset: Servo Control
Mandrel Stroke: 800mm (customizable)

Production Data

Cycle Time: 20-30s
Qualification Rate: 99%
Tolerance: datum points <±0.5mm
Positioning: positioning hole by drilling
Clamping Area Length: 30-50mm
Working Time: 7*24h

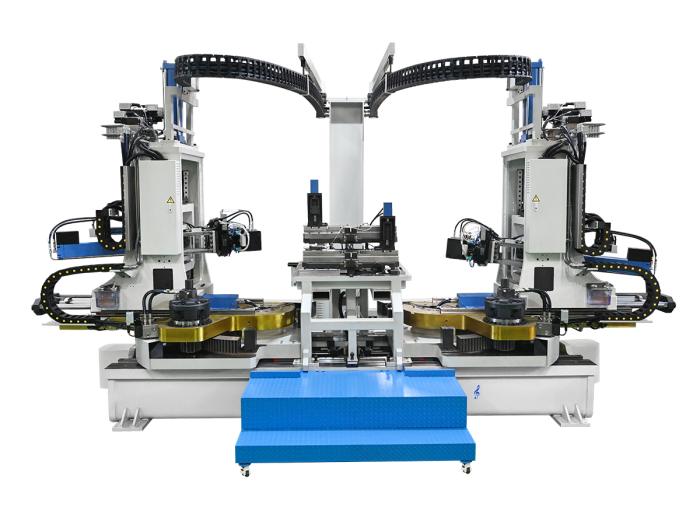

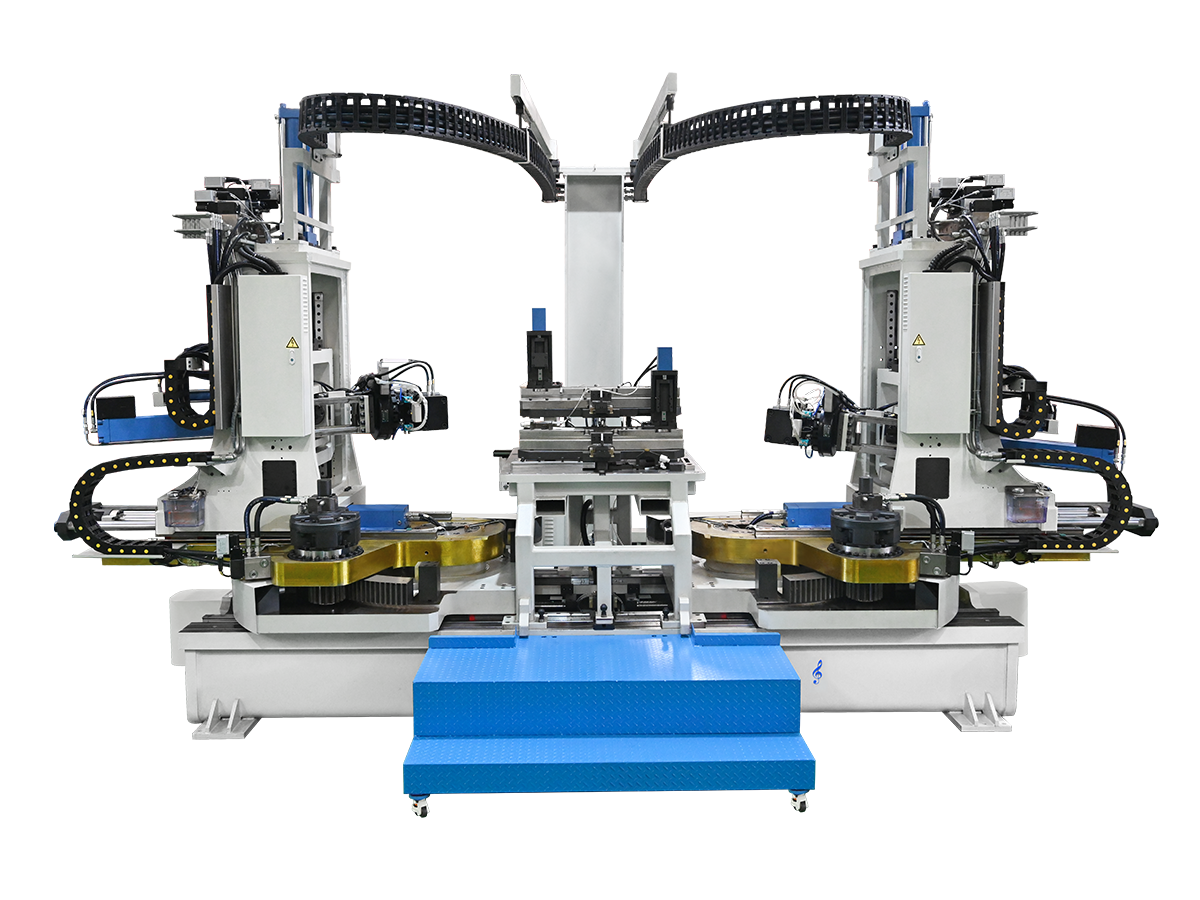

G-Clef CNC Stretch Bending Machine

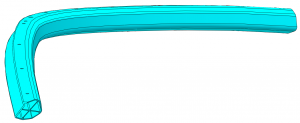

3D stretch bending workpiece 1

3D Roof Rack

3D stretch bending workpiece 2

A Pillar

3D stretch bending workpiece 3

Window Channel
