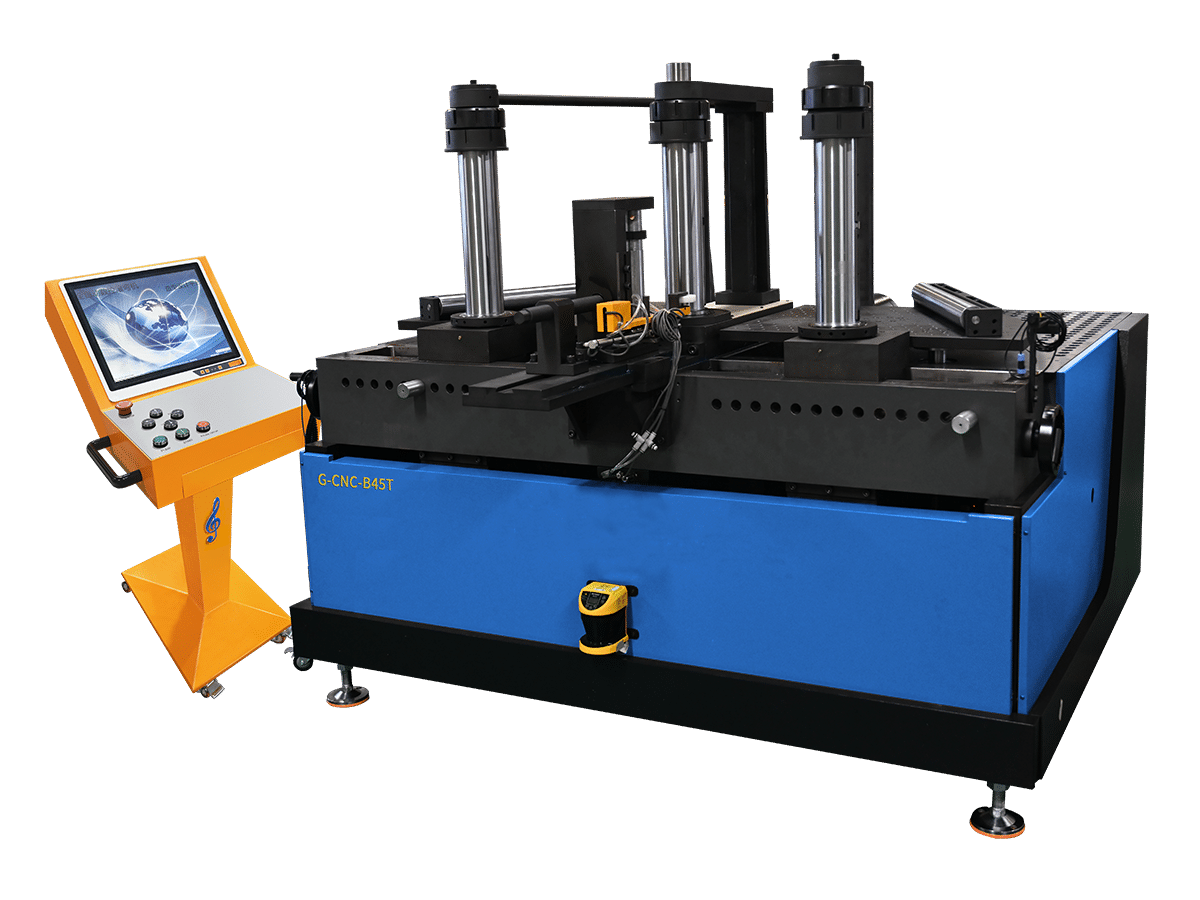

2D/3D Roll Bending Machine G-CNC-B45T

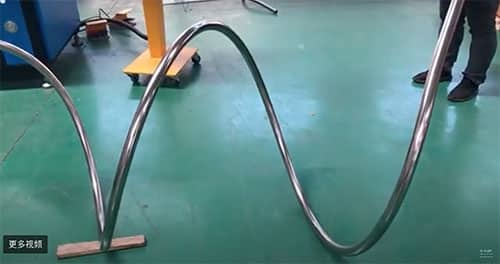

Horizontal roll bending machine B45T can bend multi-radius arcs, ellipses, parabolas and other curvatures. 2D or 3D bending function is available. With the CNC control system and servo-drive technology, it can achieve high-quality bending and help you get rid of the dependence of operating experience, reducing your labor cost.

Profile max cross-section area: 150*100*3mm.

Min. bending radius: section height* 5-8.

Description

Technical/Mechanical Data

Hydraulic Power: 45T
Y/U-axis Repositioning Accuracy: 0.01mm
Y/U-axis Stroke: 500/150mm
Shaft Diameter: 105mm
Shaft Length: 330mm
Torque: 1000N.m
Roller Distance: 400-1510mm
Individual Roller Speed: 1-10rpm, CVTv
Roller Drive: Servo hydraulic motor
Power Supply: 3-Phase,  380V, 50Hz, 31KW
Weight: 3000Kg
Dimension(L*W*H): 2170*2075*1800mm

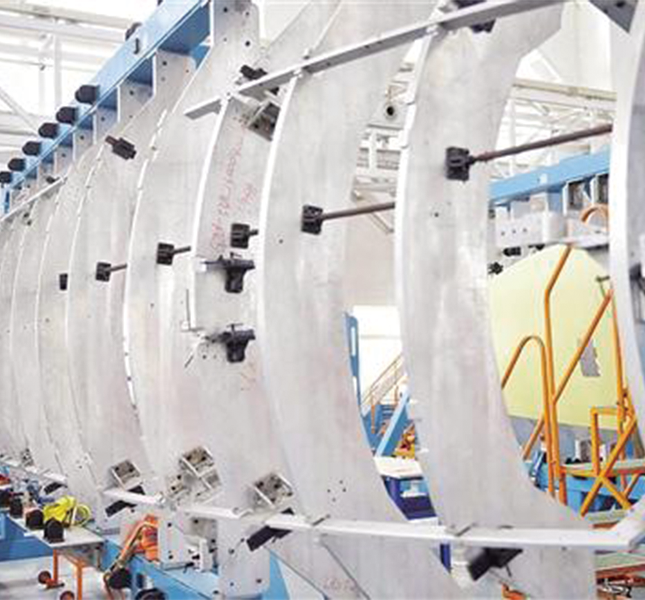

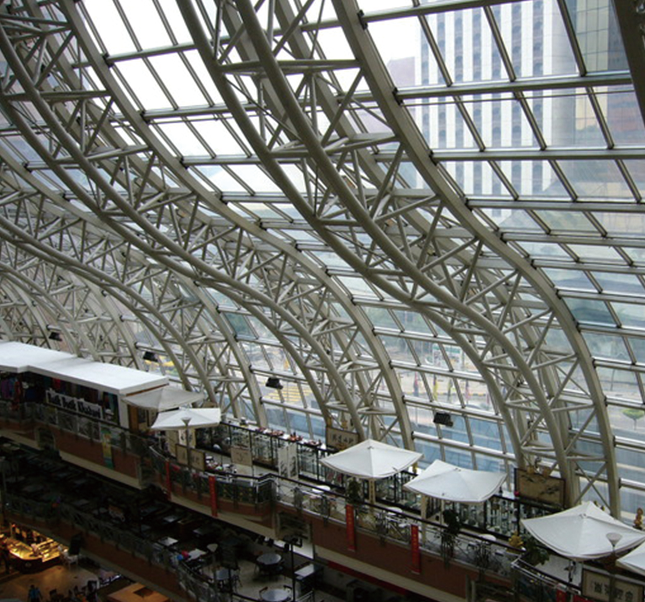

architecture
architecture
architecture
