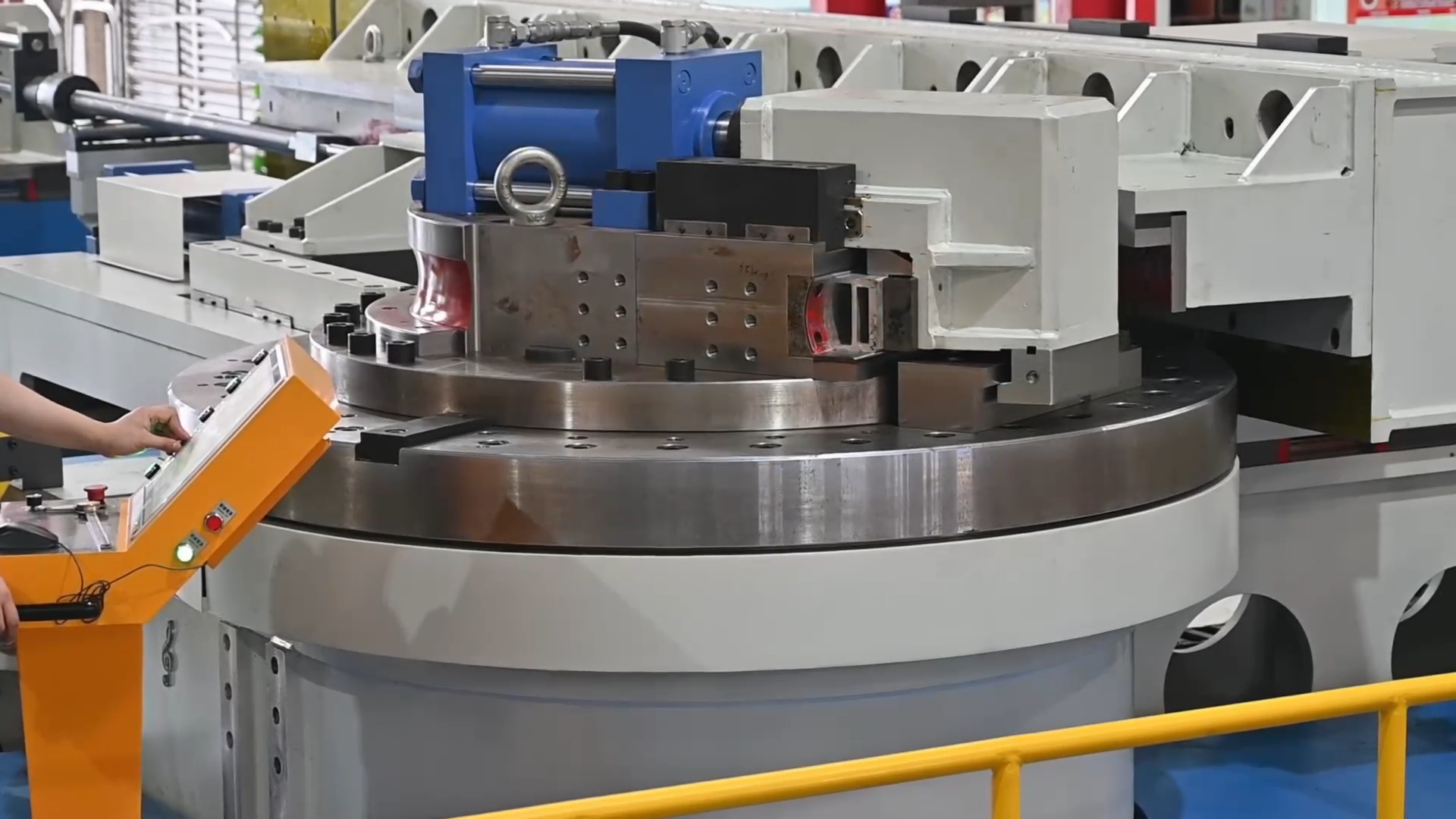

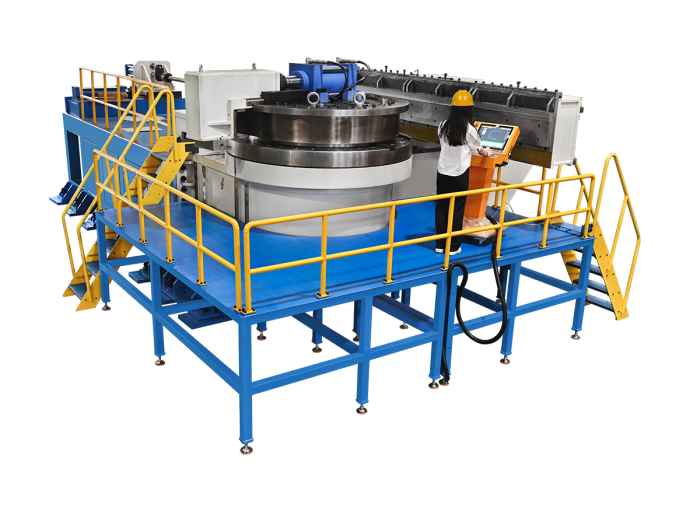

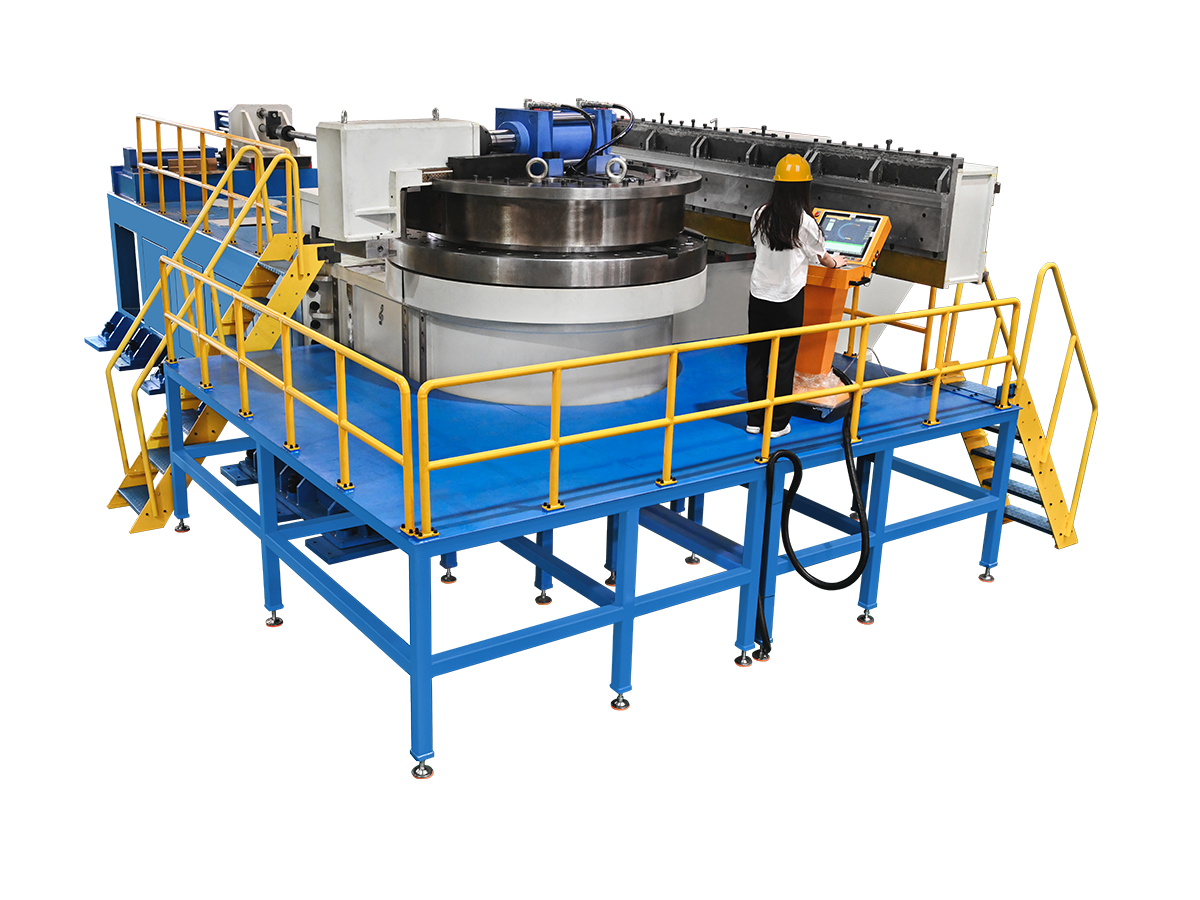

Tube Bending Machine GR-CNC-A210D

This machine A210D can bend 210×12mm steel pipe, suitable for medical equipment and other industries. Equipped with CNC system, G Clef tube bending machine has bending capabilities of multi-radius, multi-angle, multi-direction. Adopting original eccentric bending technology, it can realize small radius bending. Moreover, there is no need of manual correction after bending. It can be adapted to a wide range of machines (robot grippers, drilling devices, etc.), and realize automated production.

描述

Technical/Mechanical Data:

Bending Capacity: 210x12mm
Bending Way:
1、single radius with single layer tooling
2、multi-radius with single layer tooling
Bending Radius: max: unlimited, min: 2 times of profile diameter
Bending Angle: 0-190°
File Storage Capacity: over 10,000,000 programs
Programming:
1. Input DXF or STP drawing
2. Enter values accordingly

Cross Section: 270*122*21mm

Cross Section: 135*110*15.5mm
