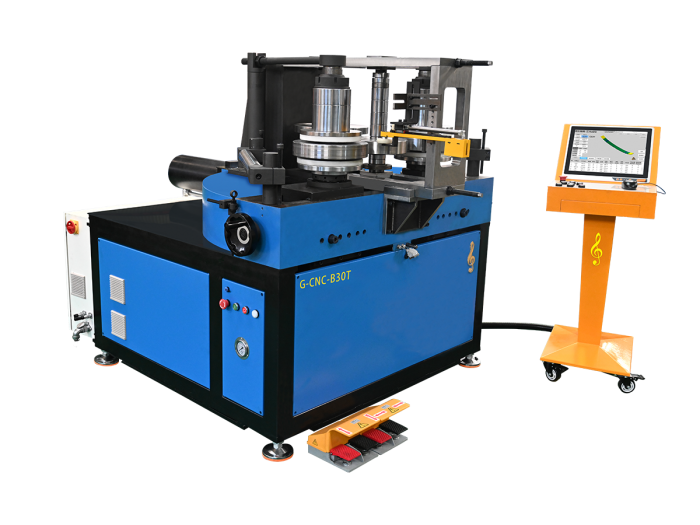

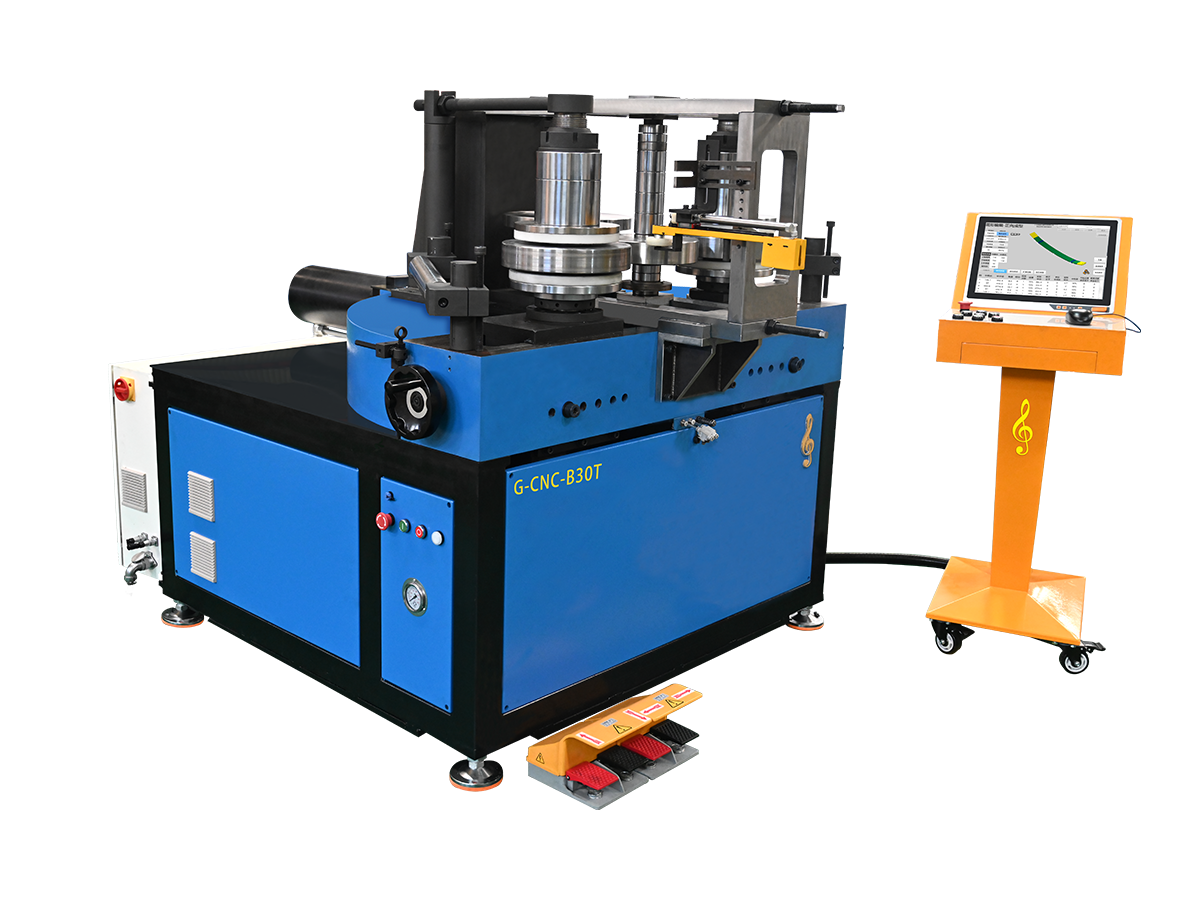

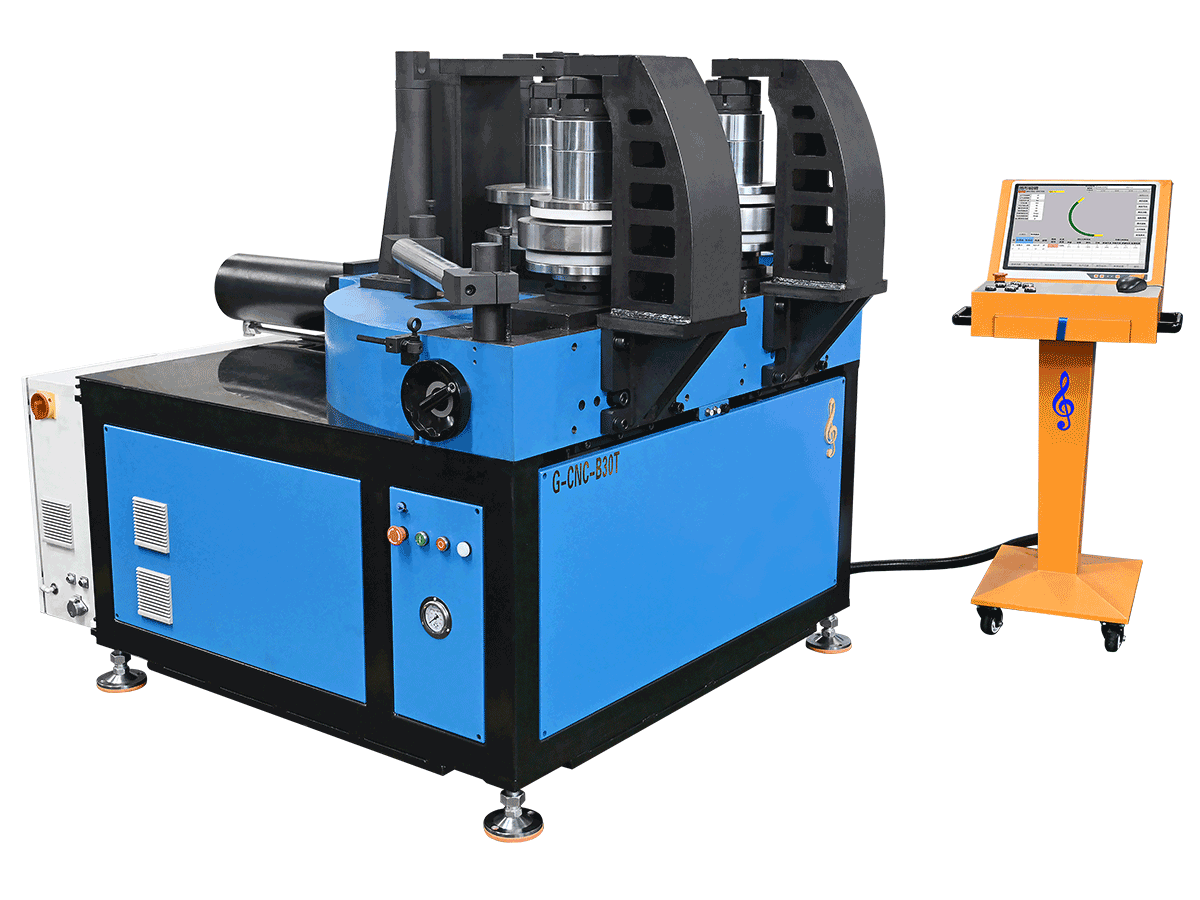

2D/3D Roll Bending Machine G-CNC-B30T

G-Clef horizontal CNC roll bending machine B30T is widely used in new energy vehicles, railway transportation, escalators, aerospace, lighting, furniture,  gym equipment and other industries. 2D or 3D bending function is available. With the CNC control system and servo-drive technology, it can achieve high-quality bending and help you get rid of the dependence of operating experience, reducing your labor cost.

Profile max cross-section area: 100*100*3mm.

Min. bending radius: section height* 5-8.

Description

Technical/Mechanical Data

Hydraulic Power: 30T
Y/U-axis Repositioning Accuracy: 0.01mm
Y/U-axis Stroke: 330/100mm
Shaft Diameter: 80mm
Shaft Length: 315mm
Torque: 6000N.m( upper/lower roller: 3400/ 1600N.m)
Roller Distance: 280-762mm
Individual Roller Speed: 1-14rpm, CVT
Drive System: Servo hydraulic motor
Power Supply: 3 Phase, 380V,50Hz, 20KVA
Weight: 2400Kg
Dimension(L*W*H): 1575*1400*950mm

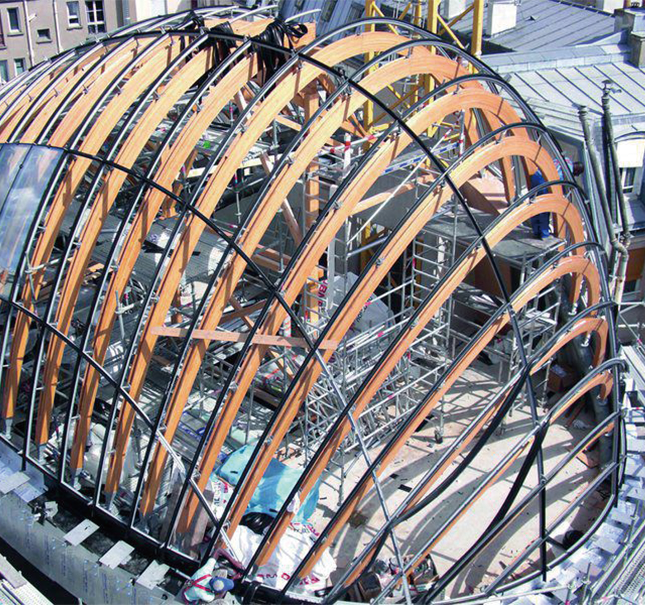

architecture
heavy transportation vehicle
car
