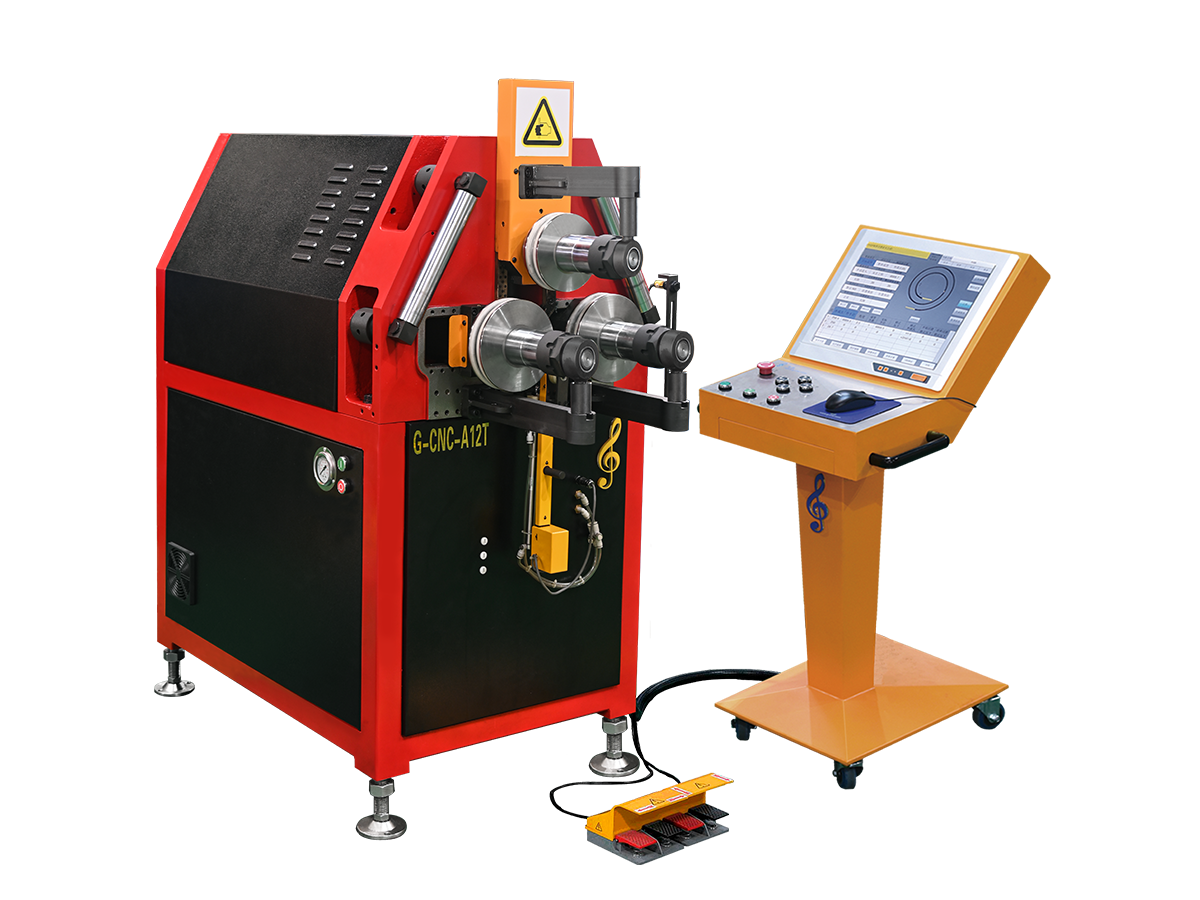

Roll Bending Machine G-CNC-A12T

Vertical roll bending machine A12T can bend multi-radius arcs, ellipses, parabolas and other curvatures. 2D or 3D bending function is available.  The 4th roller can be customized based on your needs. With CNC control system and servo-drive technology, it can achieve high-quality bending and help you get rid of the dependence of operating experience, reducing your labor cost. As our mature product, the sample-making period and lead time are short to satisfy your urgent needs.

Profile max cross-section area: 60*60*3mm.
Min. bending radius: section height* 5-8.

Description

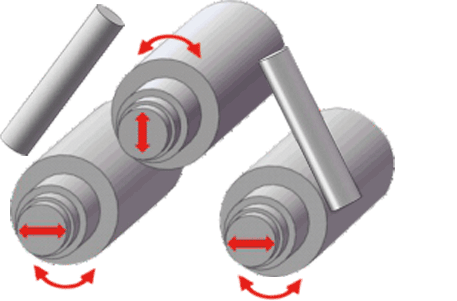

Roller demonstration

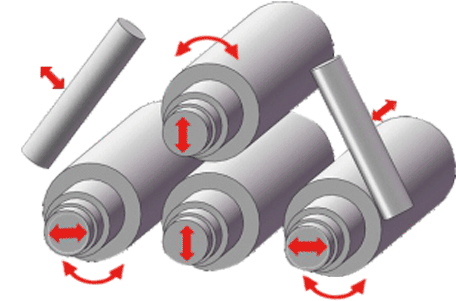

Roller demonstration
Roller demonstration

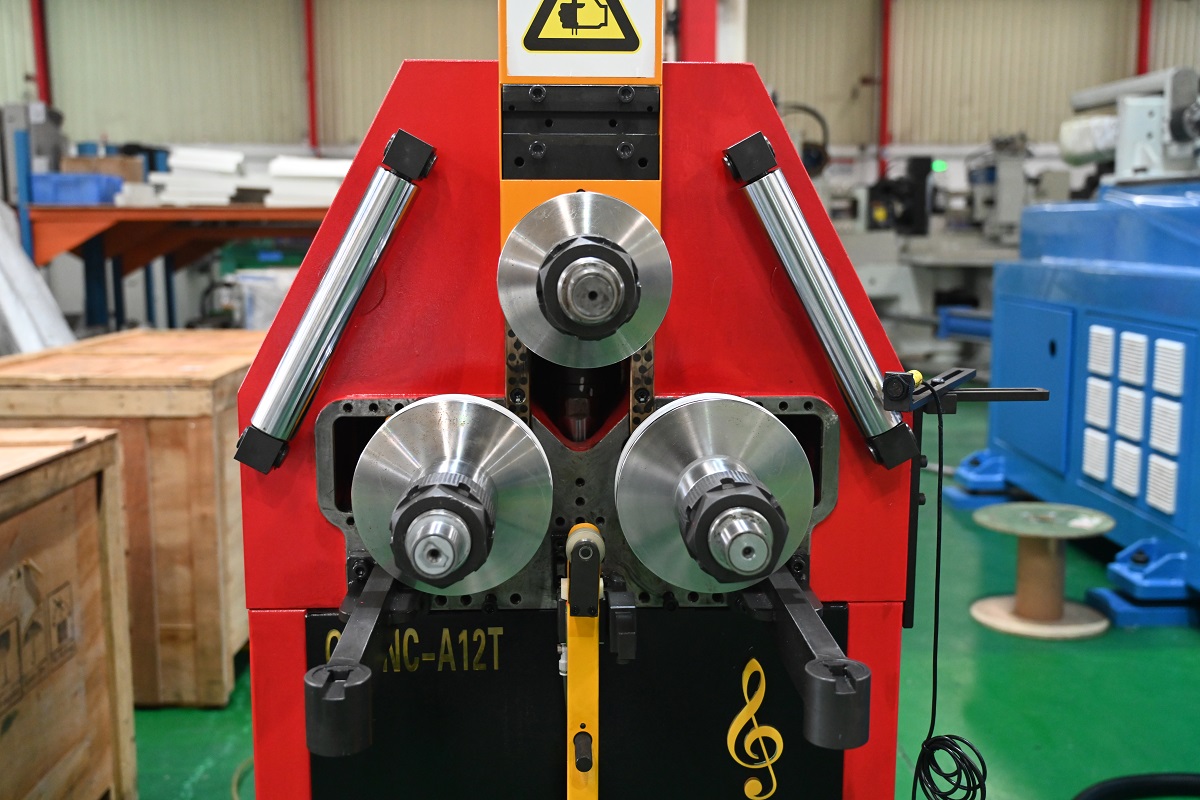

A12T

A12T-2U

A12T-2Z

Technical/Mechanical Data

Hydraulic Power: 12T
Y/Z-axis Repositioning Accuracy: 0.01mm
Y/Z-axis Stroke:165/100mm
Shaft Diameter: 50mm
Shaft Length: 180mm
Torque: 1700N.m
Roller Distance: 180–380mm
Individual Roller Speed: 1-20rpm, CVT
Driving Power: Asynchronous motor
Power Supply: 3 Phase, 380V, 50Hz, 8.8KVA
Weight:1000Kg
Dimension(L*W*H):1400*675*1360mm

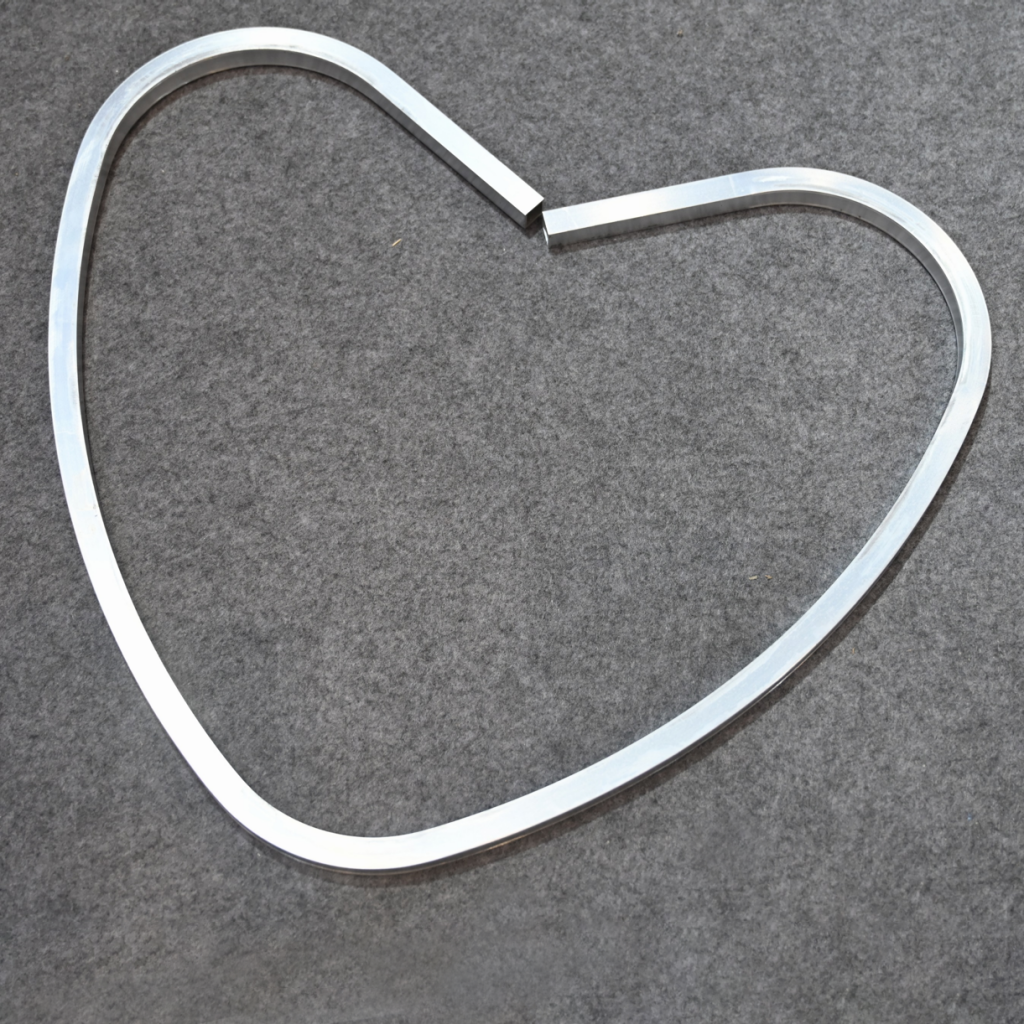

Lighting aluminum profiles
Lighting aluminum profiles
