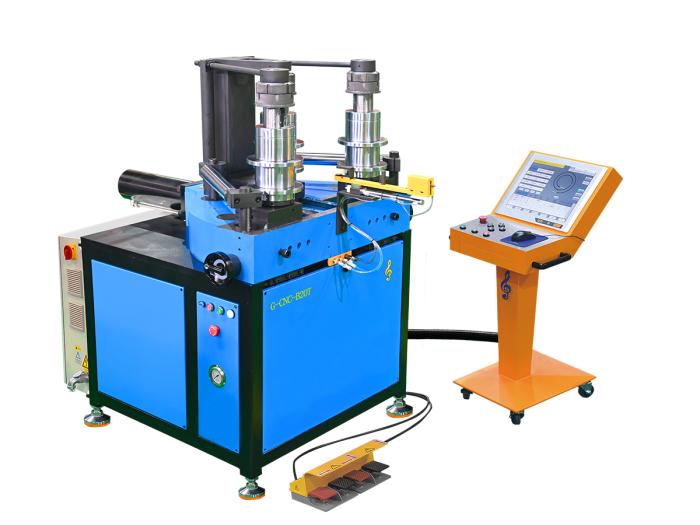

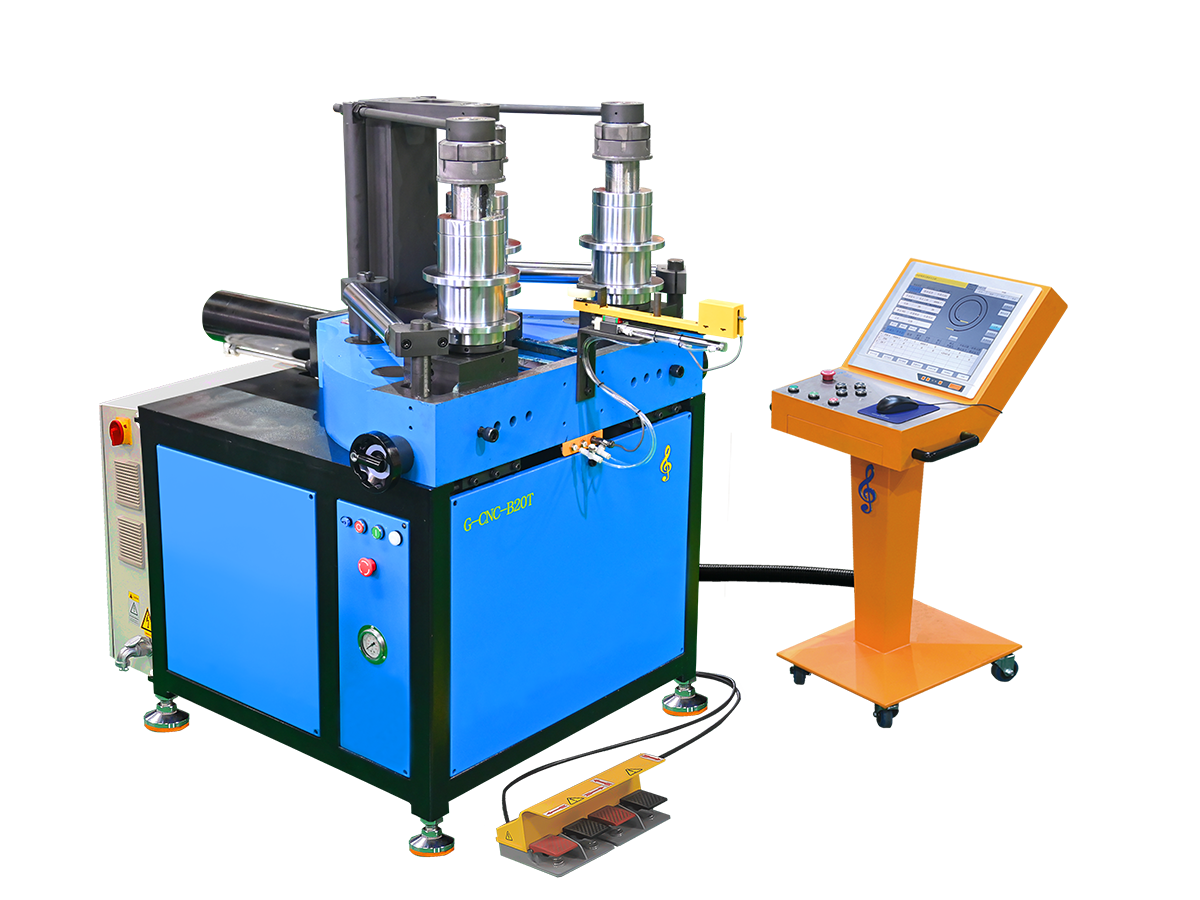

2D/3D Roll Bending Machine G-CNC-B20T

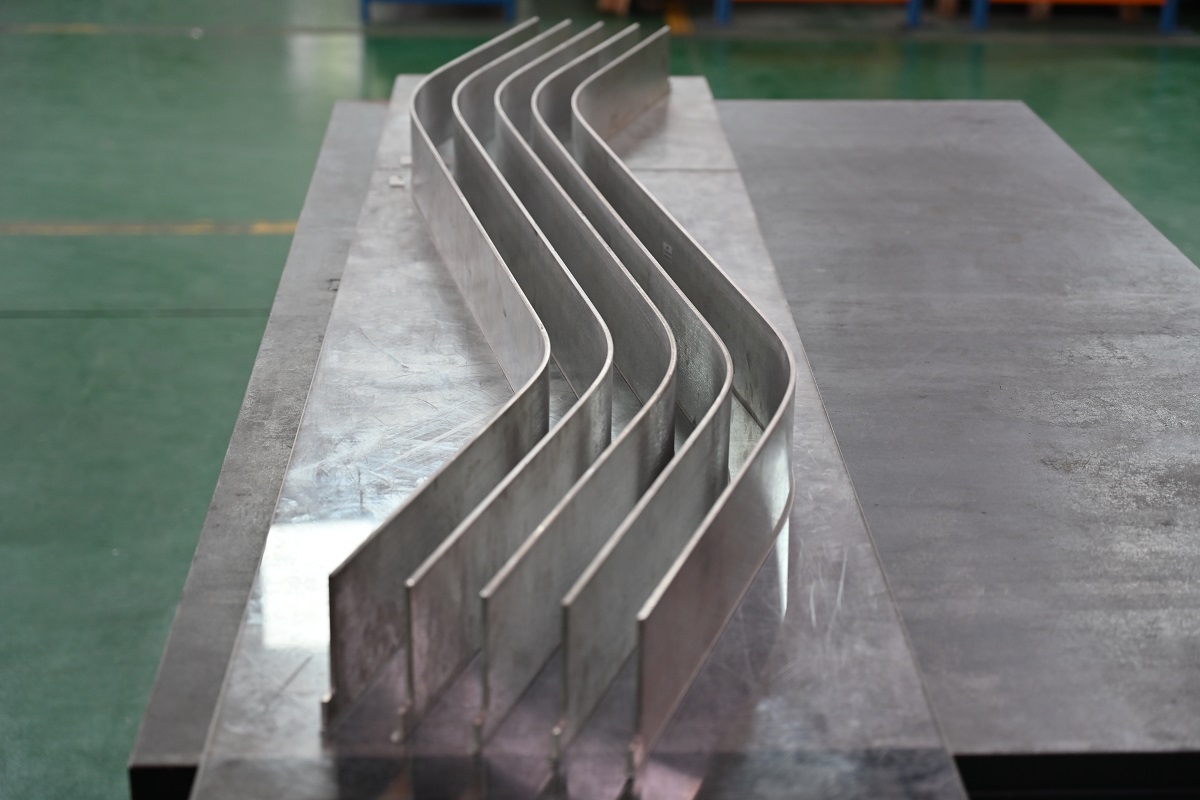

Horizontal roll bending machine B20T can bend multi-radius arcs, ellipses, parabolas and other curvatures. 2D or 3D bending function is available.  The 4th roller can be customized based on your needs. With the CNC control system and servo-drive technology, it can achieve high-quality bending and help you get rid of the dependence of operating experience, reducing your labor cost. As our mature product, the sample-making period and lead time are short to satisfy your urgent need.

Profile max cross-section area: 80*80*3mm.
Min. bending radius: section height* 5-8.

Description

Technical/Mechanical Data

Hydraulic Power: 20T
Y/U-axis Repositioning Accuracy: 0.01mm
Y/U-axis Stroke: 255/100mm
Shaft Diameter: 80mm
Shaft Length: 250mm
Torque: 3396N.m
Roller Distance: 278-538mm
Individual Roller Speed: 0-14rpm, CVT
Drive System: Servo motor
Power Supply: 3 Phase, 380V, 50Hz, 10.3KVA
Weight: 1200Kg
Dimension(L*W*H): 1249*1134*1432mm

furniture
car
