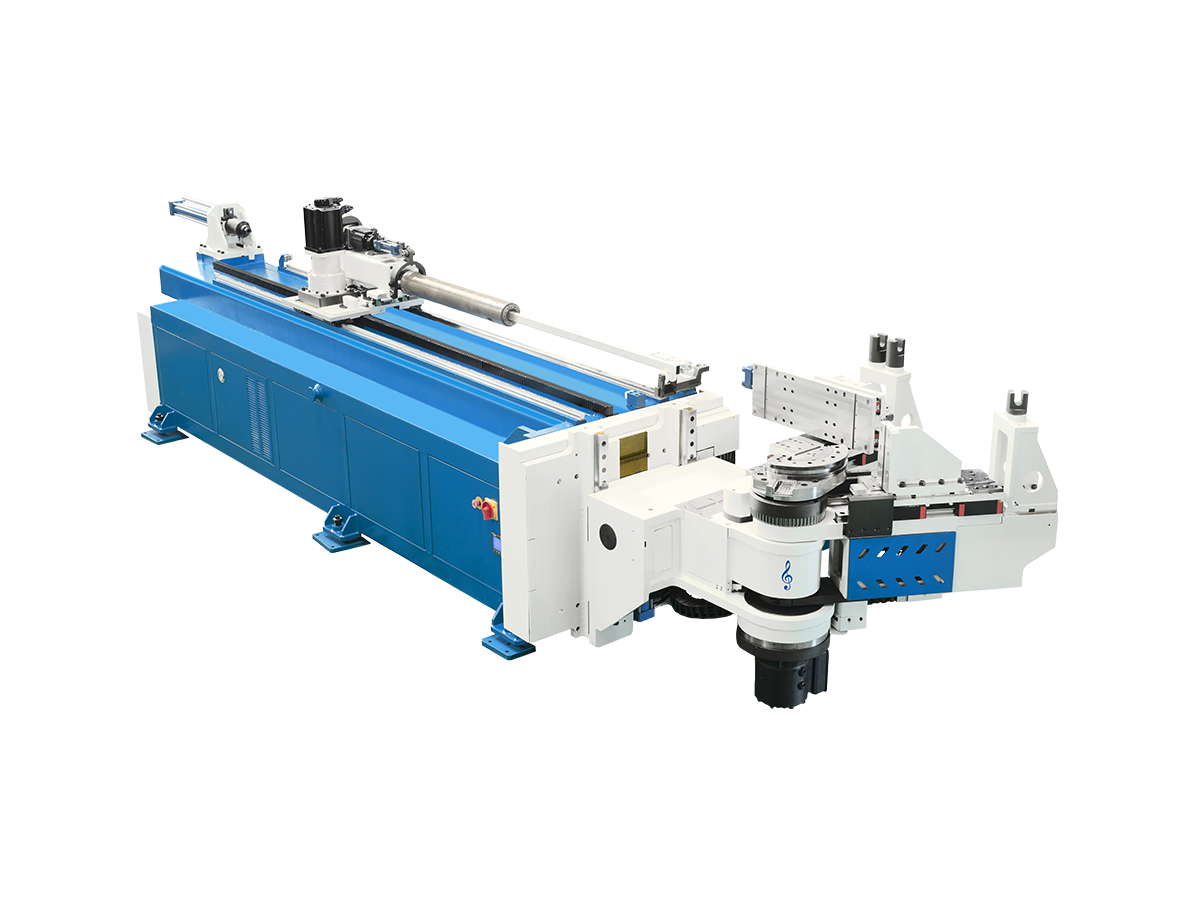

Tube Bending Machine GR-CNC-A50D

Equipped with CNC system, G Clef tube bending machine has bending capabilities of multi-radius, multi-angle, multi-direction. Adopting original eccentric bending technology, it can realize small radius bending. Moreover, there is no need of manual correction after bending. It can be adapted to a wide range of machines (robot grippers, drilling devices, etc.), and realize automated production.

描述

Technical/Mechanical Data
  • Bending Capacity: 50x3mm
  • Bending Way:
    1. single radius with single layer tooling
    2. multi-radius with single layer tooling (like ellipse)
    3. Eccentric bending
  • Bending Radius: max: unlimited, min: 2 times of profile diameter
  • Bending Angle: any
  • Feeding Length: 5000mm max
  • File Storage Capacity: over 10,000,000 programs
  • Programming:
    1. Input DXF or STP drawingم
    2. Enter values accordingly
Stair rail
Eccentric bending

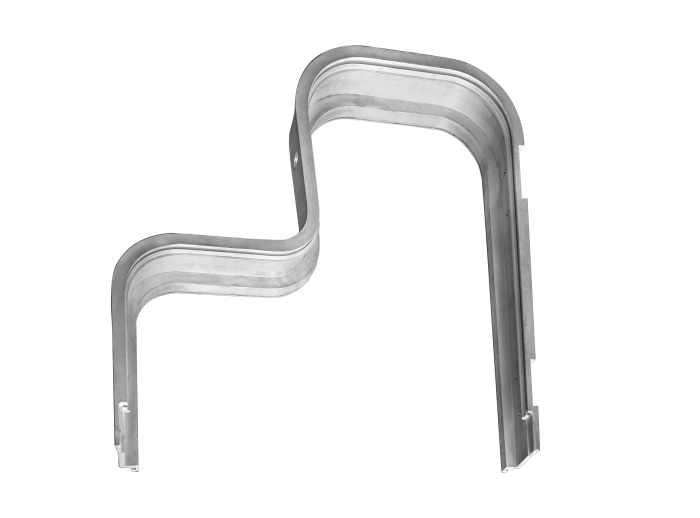

Tube bending workpiece
