Vertical Roll Bending Machine

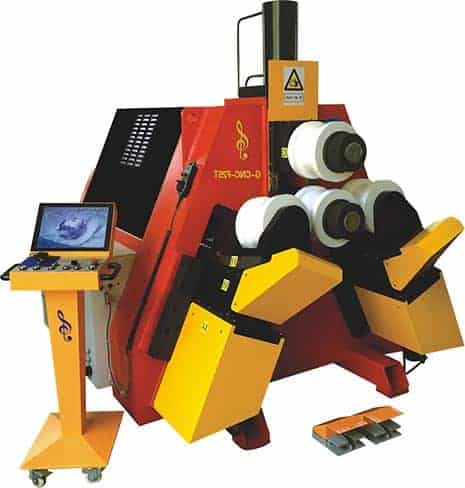

THE WORLD’S MOST ADVANCED
FOUR-ROLLER BENDING MACHINE

	Up to 9 independent servo axes.
	Automatic CNC systems, dwg. / stp. drawings available.
	3-dimensional bending of profiles
	High accuracy hydraulic close-loop control system
	National patent technology, unique core algorithm
	Servo electric and servo hydraulic systems

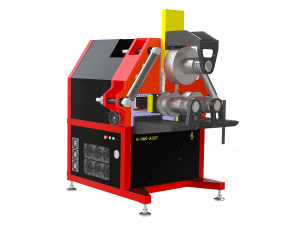

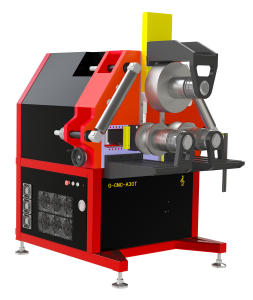

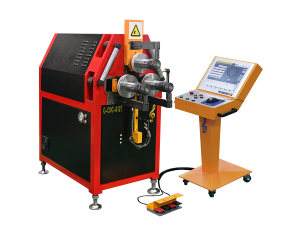

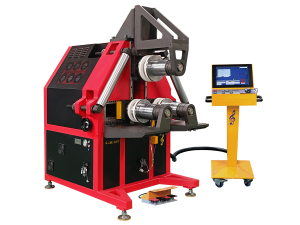

Technical Data	G-CNC-A12T	G-CNC-A25T	G-CNC-A35T
Hydraulic Power	12T	25T	35T
Y/Z-axis Repositioning Accuracy	0.01mm	0.01mm	0.01mm
Individual Roller Speed	1-20rpm,Continuously adjustable	1-15rpm,Continuously adjustable	1-10rpm,Continuously adjustable
X-shaft Distance	180-380mm	280-760mm	380-800mm
Shaft Diameter	50mm	80mm	105mm
Shaft Length	180mm	330mm	390mm
Torque	1700N.m	4188N.m	upper 5000N.m,lower 3300N.m
Y/Z-axis Stroke	165/100mm	250/150mm	350/150mm
Hydraulic Drive	2.2KW	2.2KW	2.2KW
Roller Drive	2.4KW	4.4KW	4.4kw
Power Supply	3 Phase 380V, 50Hz, 8.8KVA	3 Phase 380V, 50Hz, 20KVA	3 Phase 380V, 50Hz, 38.5KVA
Weight	1000Kg	2300Kg	3500Kg
LWH	14006751360mm	203713002148mm	197013002200mm
