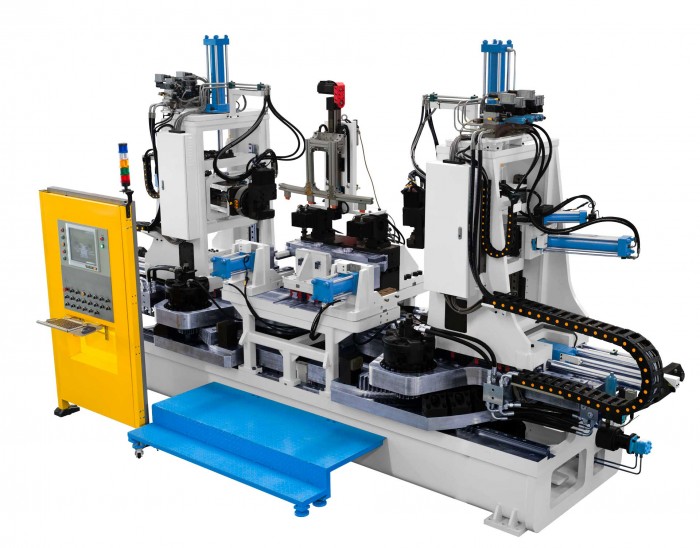

3D Stretch Forming Machine

https://youtu.be/uo79TKVmb1k

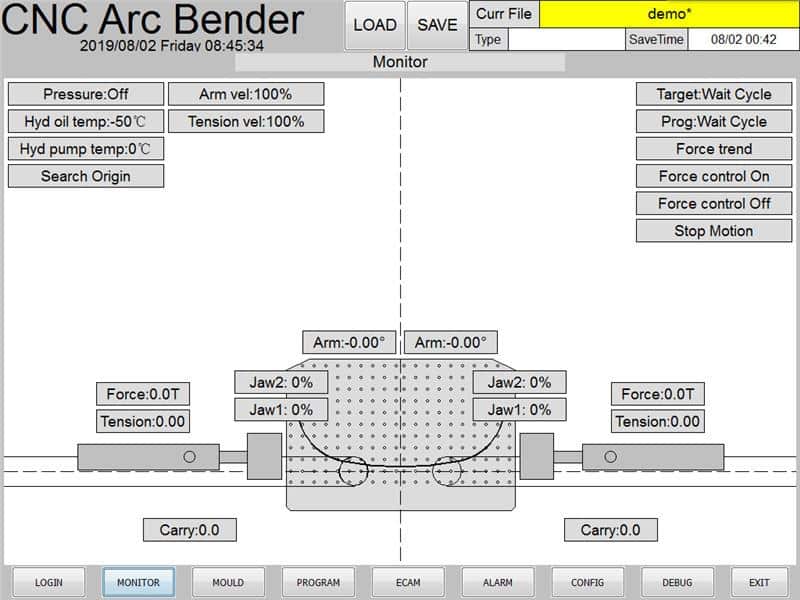

Through the G Clef unique software, you can realize precise profile bending with variable curvature, work efficiency can be greatly improved, labor cost can be saved, the operation is simple, and very easy learning. Whether it is profile, pipe, square tube, G Clef not only sells the bending machine, but also provides the corresponding bending solutions for the customers.

With G Clef bending solution and experience, the customer will be in the leading position in the bending peer! For our customer, you just need to bring us the problem, regarding to the distortion, wrapping, collapse, twist, curve/bow, bulge, asymmetry, S curve, elliptical and spline which do harm to the efficiency, time and cost, we will provide a complete solution.

Our creative solutions have already approved by some famous companies in automotive, escalator, aerospace, rail transit, conveyor, facade, doors and windows, roofing, lighting industries etc.

The basic principle of the stretch forming is to apply the tangential tension while the profile is bent to overcome wrinkle instability on the inside and improve the stress distribution of cross section, reduces the springback and improves the shape accuracy. During the deformation process of the profile material, execute the radial tensile stress , ( execute stretch bending ) can reduce the stress difference between the inner and outer layers, therefore reducing the springback, improve the forming precision of parts.

According to different control methods, the bending can be divided into tension-controlled stretch forming and position-controlled mode.When loading under the position mode, stretch forming directly control of the elongation of the profile by precisely controlling the movement trace of the jaw gripper, compared to the loading method under force control, by this way there is more superiority, high forming precision and higher consistency.
